232kWh
PV + Diesel Generator + Grid

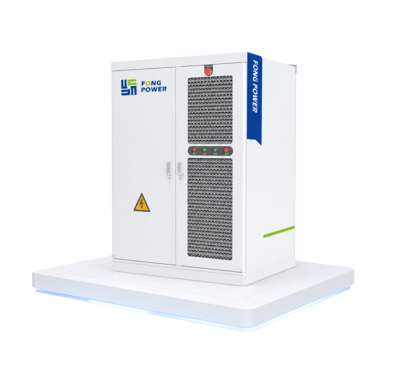

BESS Cabinet
PV+DG+Grid Connect
Smart O&M
High-efficiency PCS
Economical & Efficient
Airflow Design
Safety & Reliable
PRODUCT FEATURES
PRODUCT PARAMETERS

Battery/Model

HybridCab-232

Cell Type

LFP-314 Ah, Cycle Life≥ 8000 cycles

Voltage Range

646-831 V  DC

Max. Charge/Discharge current

157 A

Rated Capacity

232 kWh

Communication

ISO SPI

Max. Depth of Discharge

100%（25±2℃）

Photovoltaic Input


Recommended Max. Power

1MPPT 50kW*2

Photovoltaic Voltage Range

300-900 V DC

Max. Input Current

150 A

Max. Input Series

2 PCS

AC Side Output


Rated Power

100/125 kW

Output Voltage

380/400 V

Output Frequency

50/60 Hz

Power Factor

＞0.99

AC Side Input


Input Voltage

380(-20%～+15%) V

Max. Input Current

280 A

Input Frequency

50/60±2.5 Hz

General


Temperature Range

-15°C-50°C

Dimensions（W*D*H)

1700*1400*2300 mm

Communication method

CAN、RS485、WIFI

Protection level

IP55

Certification standards

UN38.3、CE-EMC

Cooling

Air Cooling
Smart Solution for Energy Storage
